NanoJet Direct Write Systems for Additive Manufacturing
G-Code based control
Vector-Based Print Platform
Vision System
Computer-Based Process Control
Modular Print and Process Assemblies
Simple Process Control and Monitoring
NanoJet FS System
Complete printing solution
Standalone configuration
Available in single and dual-material configurations
NanoJet Desktop
Complete printing solution
Desktop configuration
Single and dual material configurations
NanoJet Subsystem
Economical solution
Easily fitted to suitable motion systems
Single and dual-material configurations
NanoJet FS
Aerosol Based Print Technology
Complete Printing Solution
Compact, Modular Print Heads
Process Vision and Part Alignment Cameras
Heated Substrate Platen
Stable, Reliable Operation

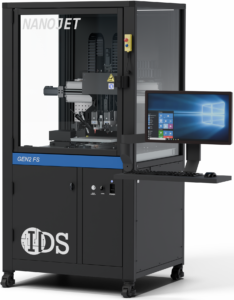

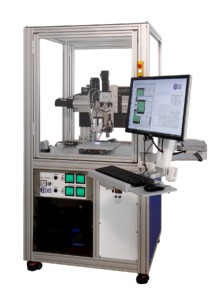

The NanoJet FS system is a free-standing printer that provides a complete printing solution. The Free-standing System accepts g-code files and enables a user to perform various tasks ranging from circuit prototyping to production manufacturing.
COMPONENTS
- Print Module
- 3-Axis Motion Control Module
- Process Control Module
- Part Alignment Camera
- Process Vision Camera
- Windows 10 Computer

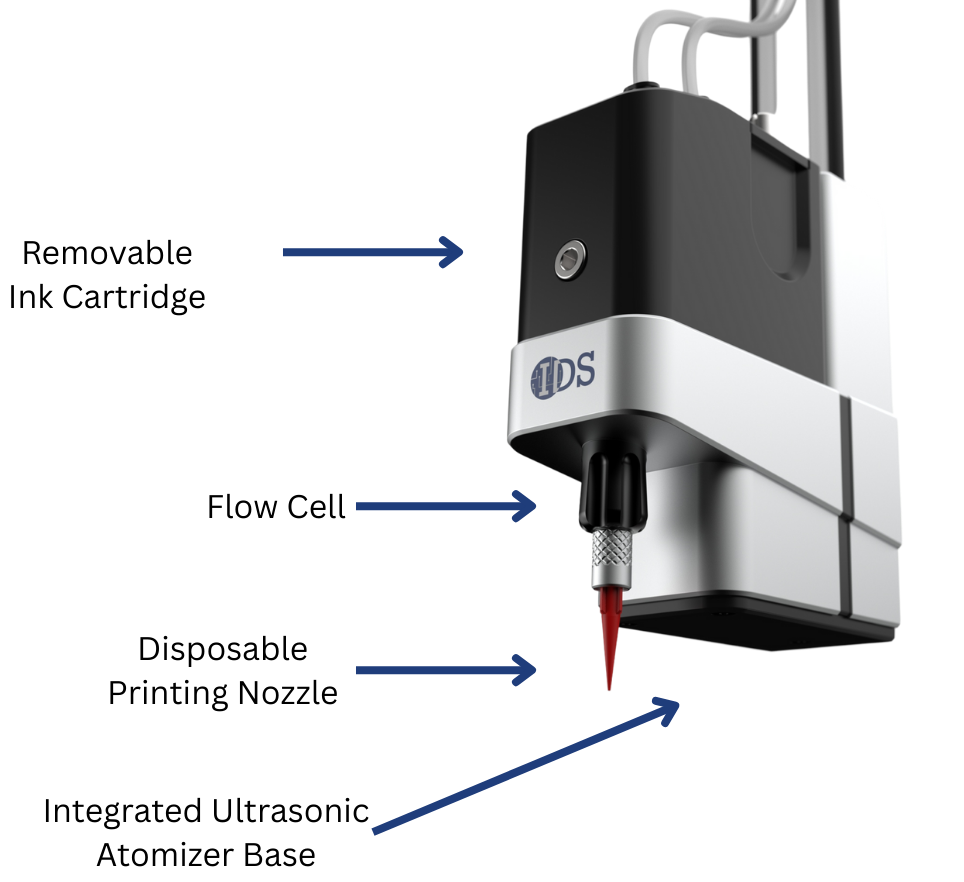

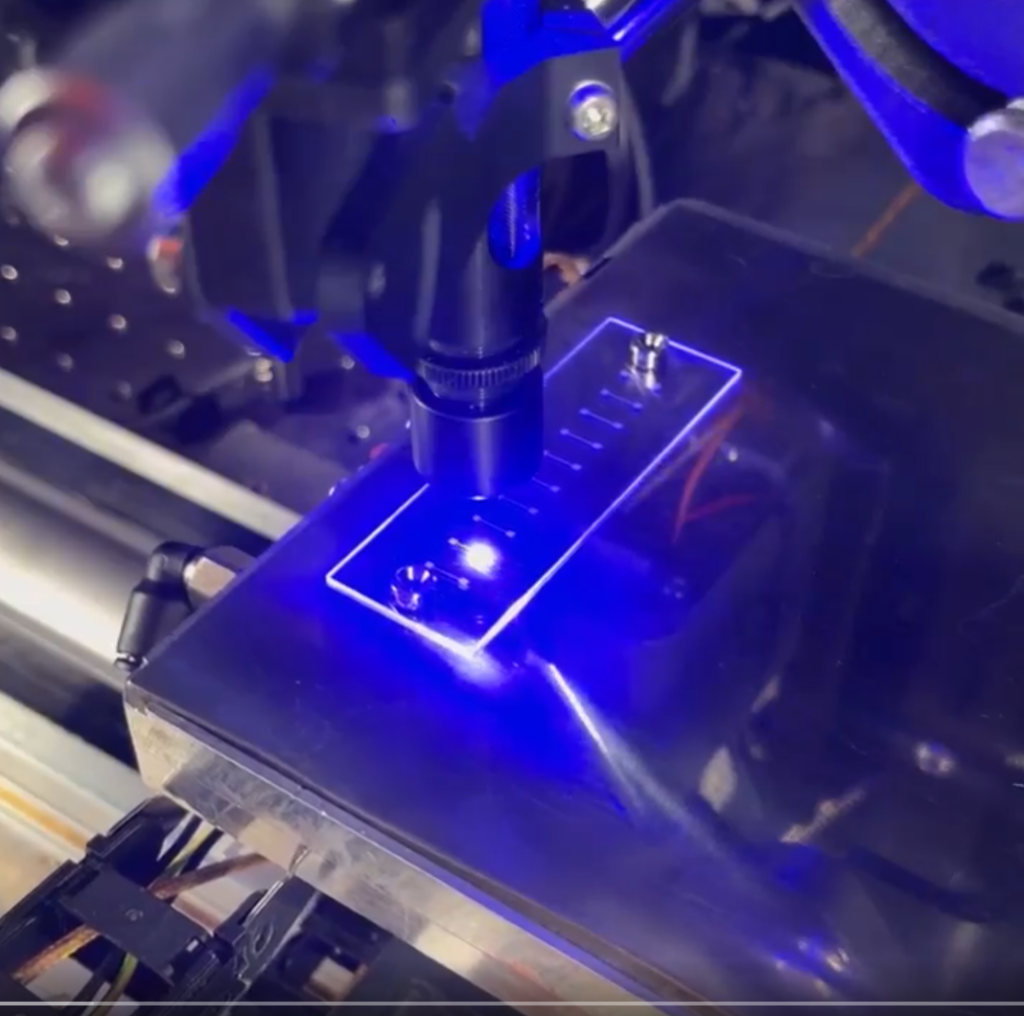

The Print Module consists of an ultrasonic aerosolization source, a removable and interchangeable ink cartridge, and a flow cell. The aerosolization source (atomizer) produces a polydisperse distribution of aerosol droplets that are transported from the ink cartridge to the flowcell, where the aerosol stream is combined with an annular sheath gas and propagated through a series of aerodynamic lenses. Line widths as small as 20 microns can be printed on substrates such as polyimide, FR4, glass, and silicon.
The Motion Control and Process Control Modules allow a user to execute motion and shuttering commands and to set and monitor process parameters such as gas flow rates, print speeds, and aerosol deposition rate.
The Part Alignment and Process Vision Cameras enable mapping of a toolpath onto a 2D or 3D part and real-time viewing of the printing process respectively.
NanoJet Desktop
Aerosol Based Print Technology
Complete Print Subsystem
Compact, Modular Print Heads
Desktop Configuration
Process Vision and Part Alignment
Demonstrated Reliable Operations
The NanoJet Desktop printer is a complete printing solution mounted in a compact enclosure. The Desktop offers the following components.
COMPONENTS
- Print Module
- 3-Axis Motion Control Module
- Process Control Module
- Part Alignment Camera
- Process Vision Camera
The Desktop printer is available in single and dual-material configurations.
Nanojet Subsystem
Aerosol Based Print Technology
Modular Print and Process Control Assemblies
Compact, Modular Print Heads
Integrable into OEM Print Platforms
Integrable to Suitable Motion Control Platforms
Demonstrated Reliable Operations
The NanoJet Subsystem is an economical print solution designed to be retrofitted to a pre-existing motion control module. The Subsystem uses the same Print Module as the (Full) FS System and Desktop systems and has the same printing capability.
COMPONENTS
- Print Module
- Process Control Module
Each NanoJet system is quality tested with an internally-developed non-toxic polymer ink. Quality testing checks for the proper function of the entire system and guarantees print stability and process repeatability.
Single and Two Material Print Heads
Removable/Reusable Ink Cartridges
Point of Use Aerosol Generation
Simple Operation
Easy Maintenance
Single and Dual-Material Printheads
The Print Module is available in single-material and dual-material configurations. The Dual-Material configuration has the same capabilities as the single-material configuration, but is capable of printing two inks serially or simultaneously from separate ink cartridges.
